PP110-30H High Precision Electric Translation Stage X-Axis Stage 30mm Stroke Table Precision Stage
Shipped from overseas, takes 15-25 workdays.

Shipped from overseas, takes 15-25 workdays.

Please select Quantity!
 Add to Favorites
Added successfully!
Cancelled successfully!
Description
Model : PP110-30H
Product advantages
  • Well and High Quality Control
  • Prompt Delivery

Precision electric translation stage (cross roller): PP110-30H

□ Model features:

■Standard stepping motor and RS232 interface, our ZK series motion controller can realize automatic control

■The product structure is small and light, suitable for light load, low speed use, scientific test

■High quality precision grinding screw drive, small lead, the same subdivision number can achieve high resolution

■Ingenious air-back nut structure design minimizes the clearance of the grinding screw pair

■The guide rail adopts the cross roller guide rail, which is comfortable to move. It has the function of laterally adjusting the pre-tightening force of the guide rail and eliminating the gap. It can be combined in a multi-dimensional combination.

■The fine grinding electroplating table bottom plate and reasonable rail fixing method greatly reduce the pitch and yaw of the electro-shifting table, which greatly improves the straightness and parallelism of the movement.

■The stepping motor and the grinding screw are connected by imported high-quality elastic couplings, the transmission is synchronized, the depolarization performance is good, the eccentric disturbance is greatly reduced and the noise is small.

■ Zero position and limit switch are installed at both ends to facilitate accurate positioning and protection of products, with hand wheel for easy debugging

■The base has threaded holes and through holes with standard hole spacing for easy installation and fixing.

■Replaceable servo motor, grating ruler, accept product modification and tailor-made



Product number

PP110-30H

Knot

Structure

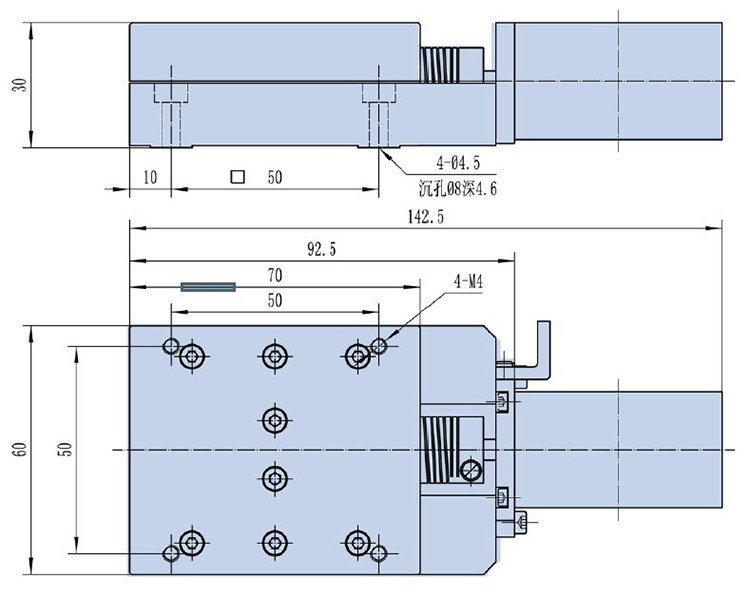

Drawing

Description

stroke

30 mm

Table size

60 × 70mm

Screw specification

Φ8 grinding screw (lead 1 mm)

guide

Precision cross roller guide

Stepper motor (1.8°)

Japan Shinano 28 stepper motor-SHINANO

Body material

Aluminum alloy

Surface treatment

Anodized black

Countertop bearing

5kg

weight

0.58kg

fine

degree

Drawing

Description

Resolution

μ/pulse (no subdivision)

Maximum speed

5mm/sec

Repeatability

μ

Absolute positioning accuracy

10 μ

Straightness

μ

Motion parallelism

20 μ

Pitch

30 ′′

Skew

25 ′′

Return gap

μ

Lost step

μ

Attached

Piece

Drawing

Description

Hall element limit switch / standard without original switch, can be installed

Can be equipped with a grating ruler (G)

Removable servo motor (D)
